Flexible PCB Manufacturing Capabilities
If you would like some specail material, tighter tolerance or other requirements,Please contact us at

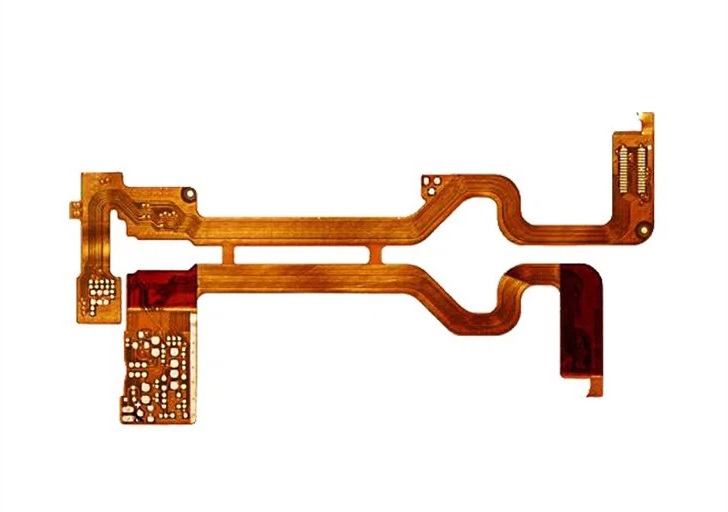

Flexible PCB Capabilities
| Item | Fabrication Capabilities |
| The number of layers | 1-30 layers |
| Material | PI, PET, EMI,FR4 |
| Maximum PCB Size | 250*410mm (min8*12mm) |
| Board Thickness | 0.027-1mm |
| Board Thickness Tolerance | ±0.02mm |
| PI Stiffener Material specification | 1-13 mil |

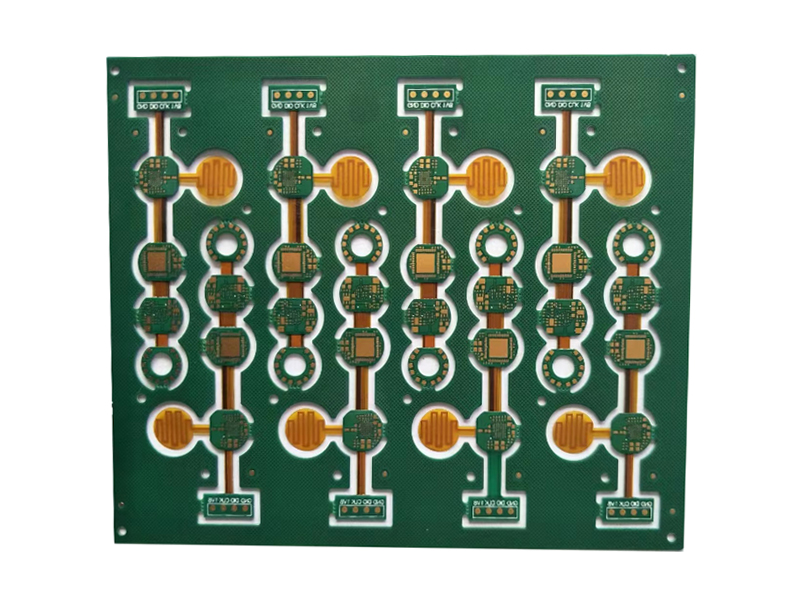

Rigid-flex PCB Capabilities
| Item | Fabrication Capabilities |
| The number of layers | 2-48 layers |
| FPC main substrate | Taiflex,Gracethw,Shengyi,Songrun |
| PCB material | Shengyi,ITEQ,KB,FR4 |
| Board Thickness | 0.25-6mm |
| Min Width/Spacing | 0.05mm/0.05mm |
| Maximum Rigid-flex PCB Size | 230*500mm |
| Minimum Rigid-flex PCB Size | 5*8mm |
